SIKA 壓力校準器 - 是什麼使它們脫穎而出?

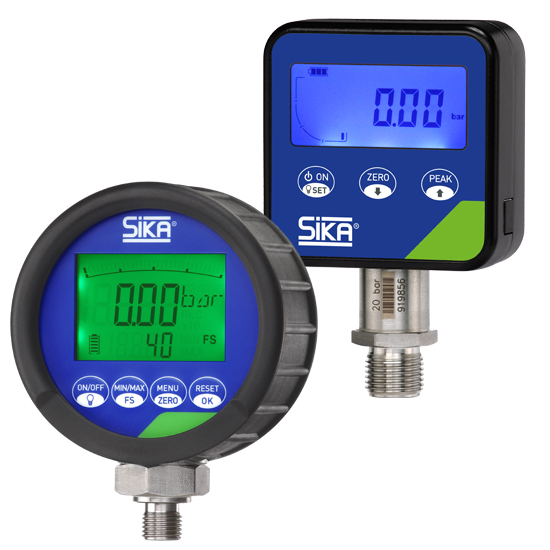

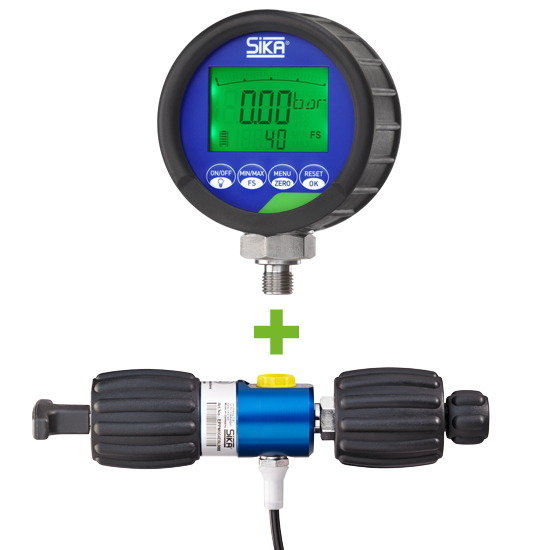

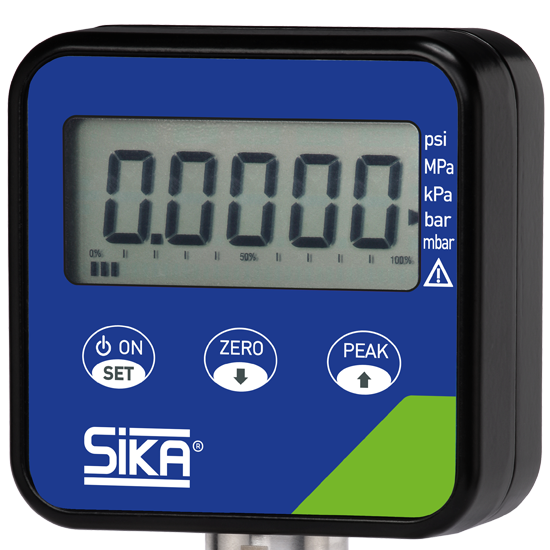

➊ Reference pressure gauges for all measuring ranges
➔ Temperature compensated measuring cells and electronics
➔ Up to 13 unit characters
➔ Measuring ranges between -1...2500 bar
Your benefit:
➔ Suitable reference pressure gauges for almost all required measuring ranges
➔ Up to 13 unit characters
➔ Measuring ranges between -1...2500 bar
Your benefit:
➔ Suitable reference pressure gauges for almost all required measuring ranges
➋ Simple pressure regulation

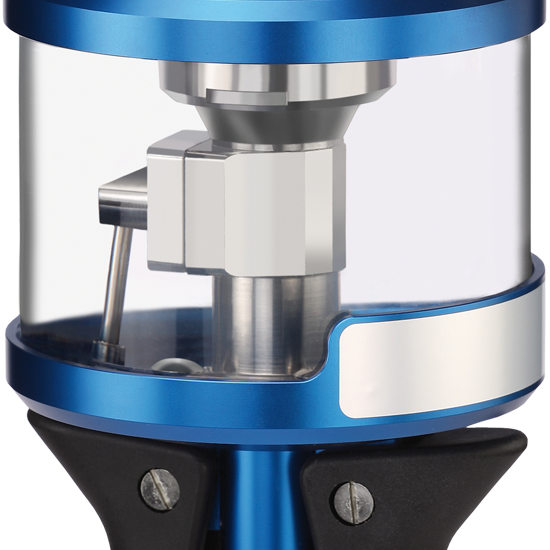

➔ Ultra-fine thread pitch
➔ Stepless pressure generation
➔ Tool-free switching between vacuum and overpressure
Your benefit:
➔ Precise and simple regulation in the mbar range
➔ Stepless pressure generation
➔ Tool-free switching between vacuum and overpressure
Your benefit:
➔ Precise and simple regulation in the mbar range
➌ Pressures up to 1000 bar
Pneumatic or hydraulic

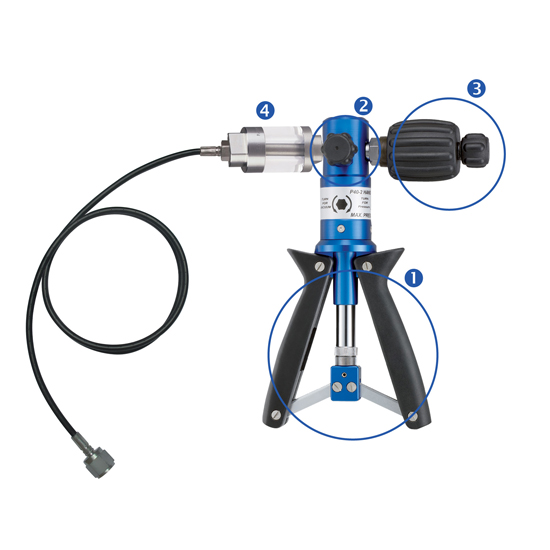

➔ Pneumatic test pumps for Low and medium pressure range

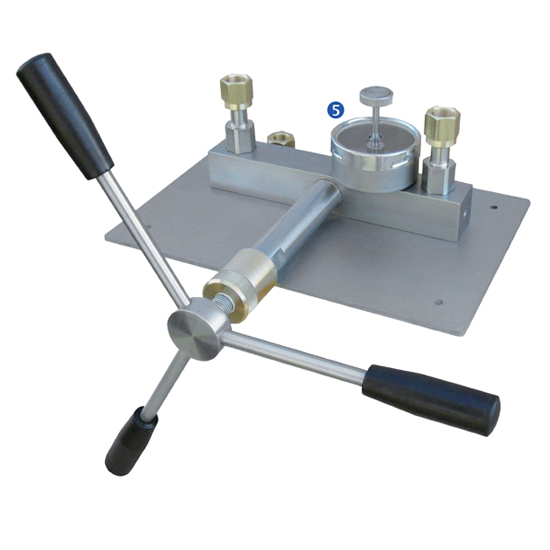

➔ Hydraulic test pumps for Medium and high pressure range
➔ Oil-free up to 1000 bar
➔ Pneumatic test pumps for Low and medium pressure range
➔ Hydraulic test pumps for Medium and high pressure range
➔ Oil-free up to 1000 bar

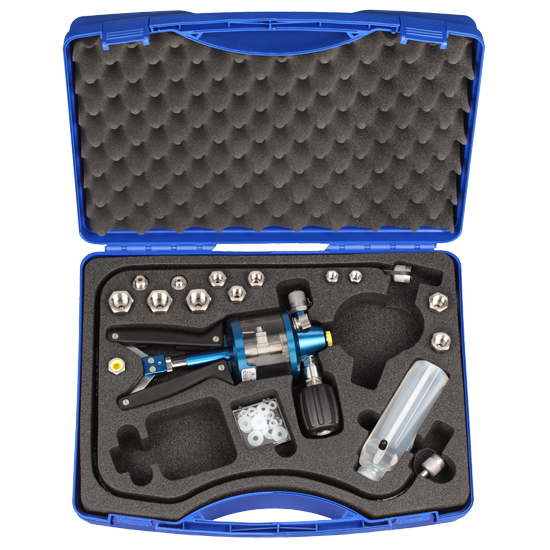

➍ Immediate on-site use
Manual pressure generation
➔ Smooth-running pressure generation thanks to ergonomic handles
➔ Operation without additional power supply
You benefit:
➔ Immediate on-site use
➔ Smooth-running pressure generation thanks to ergonomic handles
➔ Operation without additional power supply
You benefit:
➔ Immediate on-site use
| 壓力校準泵簡介 | |||||
|---|---|---|---|---|---|
| 形式 | 型號 | 壓力範圍 | 空氣 | 油 | 水 |
| 手動式校準泵 | P 4 | -0.3...4 巴 | ✓ | ||
| P 40.2 | -0.95...40 巴 | ✓ | |||
| P 60 | -0.95...60 巴 | ✓ | |||
| P 700.3 | 0...700 巴 | ✓ | ✓ | ||
| P 1000.2 | 0...1000 巴 | ✓ | ✓ | ||
| 桌面式校準泵 | P 700 T | 0...700 巴 | ✓ | ||
| P 700.G2 | 0...700 巴 | ✓ | |||
| P 700.GW | 0...700 巴 | ✓ | |||
| P 1000.G | 0...1000 巴 | ✓ | |||
| P 1000.GW | 0...1000 巴 | ✓ | |||
| P 1400.G | 0...1400 巴 | ✓ | |||
